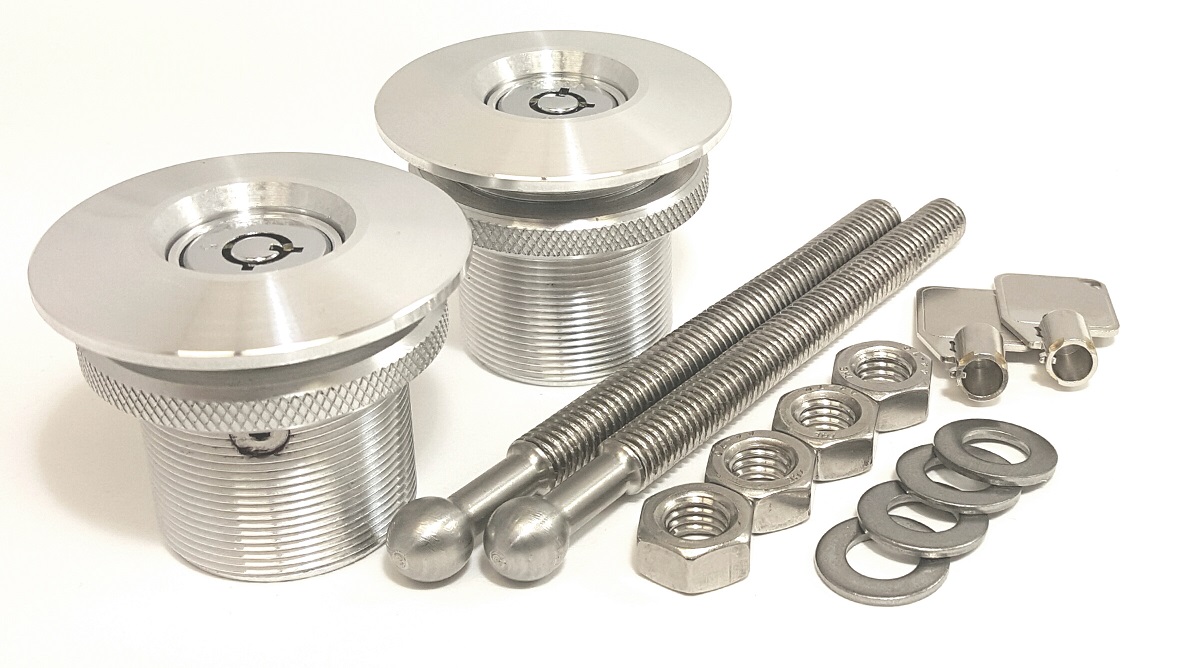

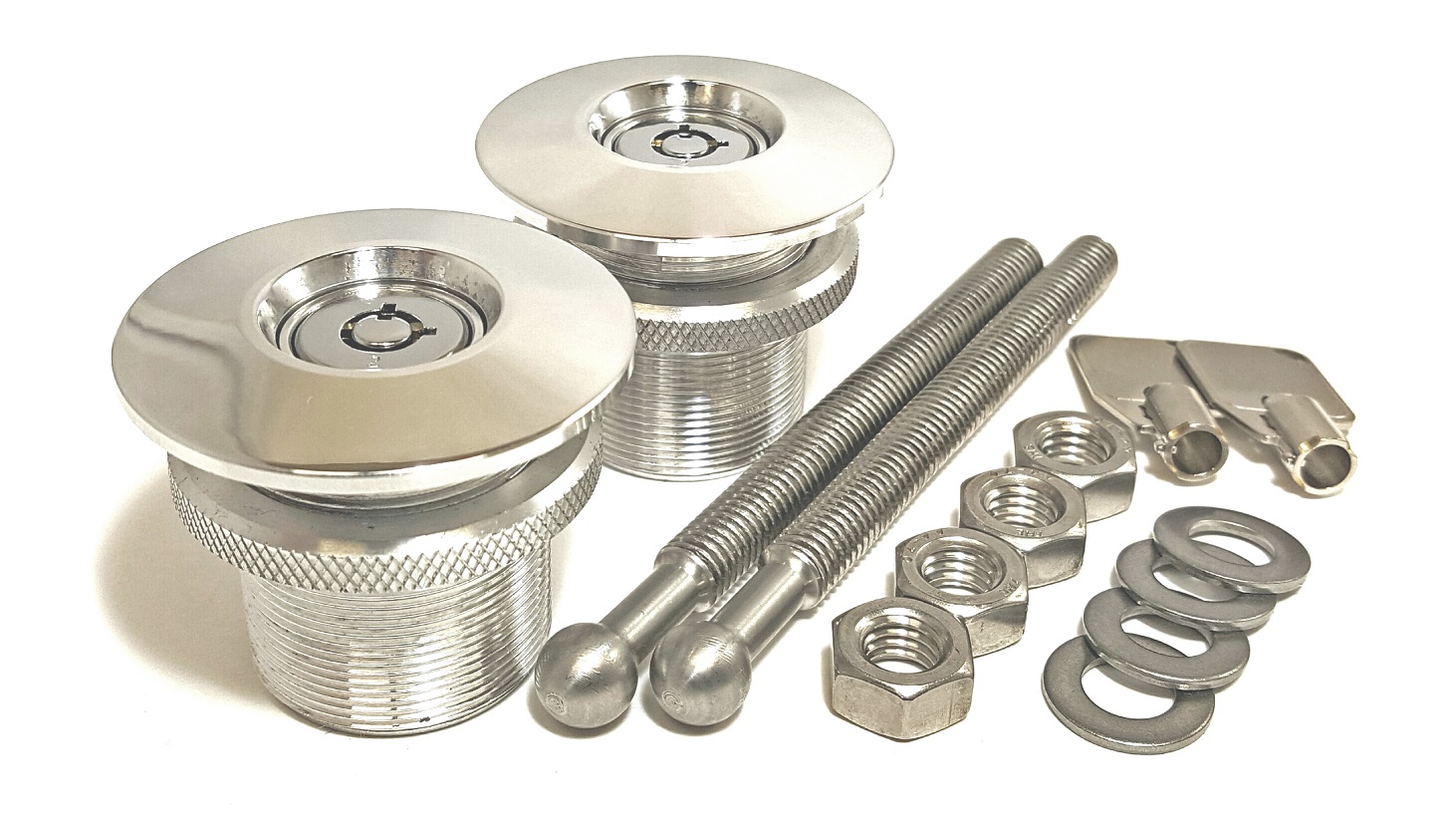

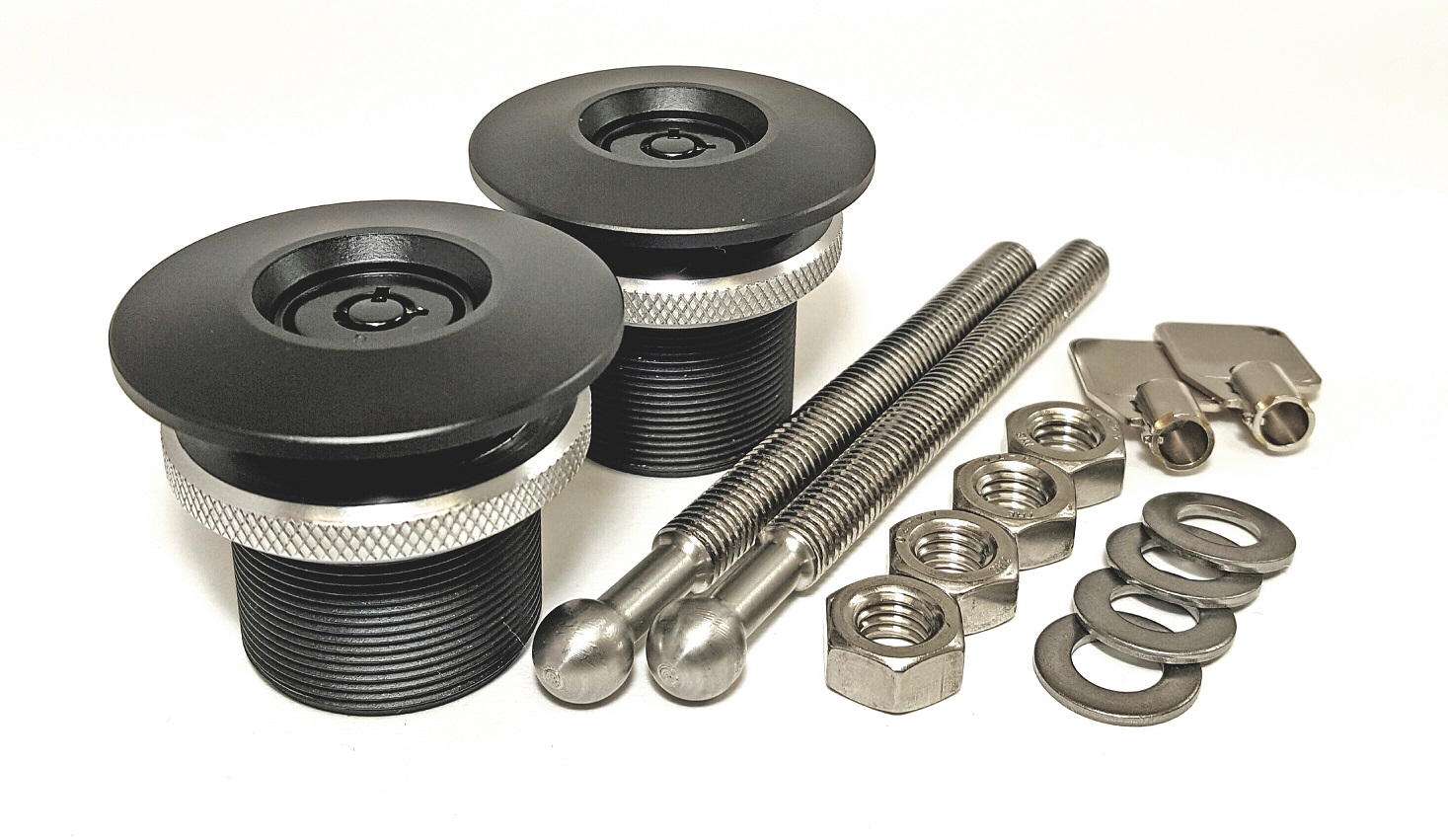

QL-38 Series Lockable Hood Pin Kits

The newest in hood pin offerings from Quik-Latch! Based on customer feedback and multiple requests, a push button hood pin kit that is sized and priced directly between the QL-25 series Mini Quik-Latches and the larger full size QL-50 series hood pin kits is now available!

Designed with the import performance market in mind, the QL-38 series hood pin kits deliver the same push button function that you've come to expect from Quik-Latch Products while retaining serious holding ability that is required of hood pins.  The reduced phyiscal presence of the 38 series hood pin kits ensures a clean and unassuming look that will blend in with your overall build.

You've spent thousands upgrading your car's mechanicals, electrical, body and paint.  Why install a hood pin made of substandard materials that could rust after just a few years?  Go with Quik-Latch hood pins and make the finishing touch to your project car representative of the pride you have in your ride!

Specifications

Materials: 6061 T6 Aluminum / 303 Stainless Steel

Holding Force: 500lbs per latch

Weight: 4.7 ounces

Height: 1.50 inch (38 mm)

Height Below Mounting Flange: 1.375 inch (35 mm)

OD of the latch mounting flange:  1.75 inch (44.5mm)

Thread size of latch body: 1 1/8 x 24 UNEF

Hole size required to mount latch: 1.25 inch (32mm)

Pin dimensions: 3/8" ball with M8 x 1.25x100 threads

Retaining Ring: 1.50 inch (38mm) OD x .25 inch (6.4) thickness

Minimum distance from top of mounting surface to mounting point: 1.125 inch  (28.50 mm)

Maximum distance from top of mounting surface to mounting point: 3.50 inch (88 mm)

Maximum mounting angle: 18 degrees

Distance needed to engage pin into latch: .687 inch (17.5mm)

Above is a comparison photo of the the 3 different series of Quik-Latches available.  From left to right is the QL-25 series, QL-38 series non-lockable, QL-38L series lockable, QL-50 series non-lockable, QL-50L series lockable

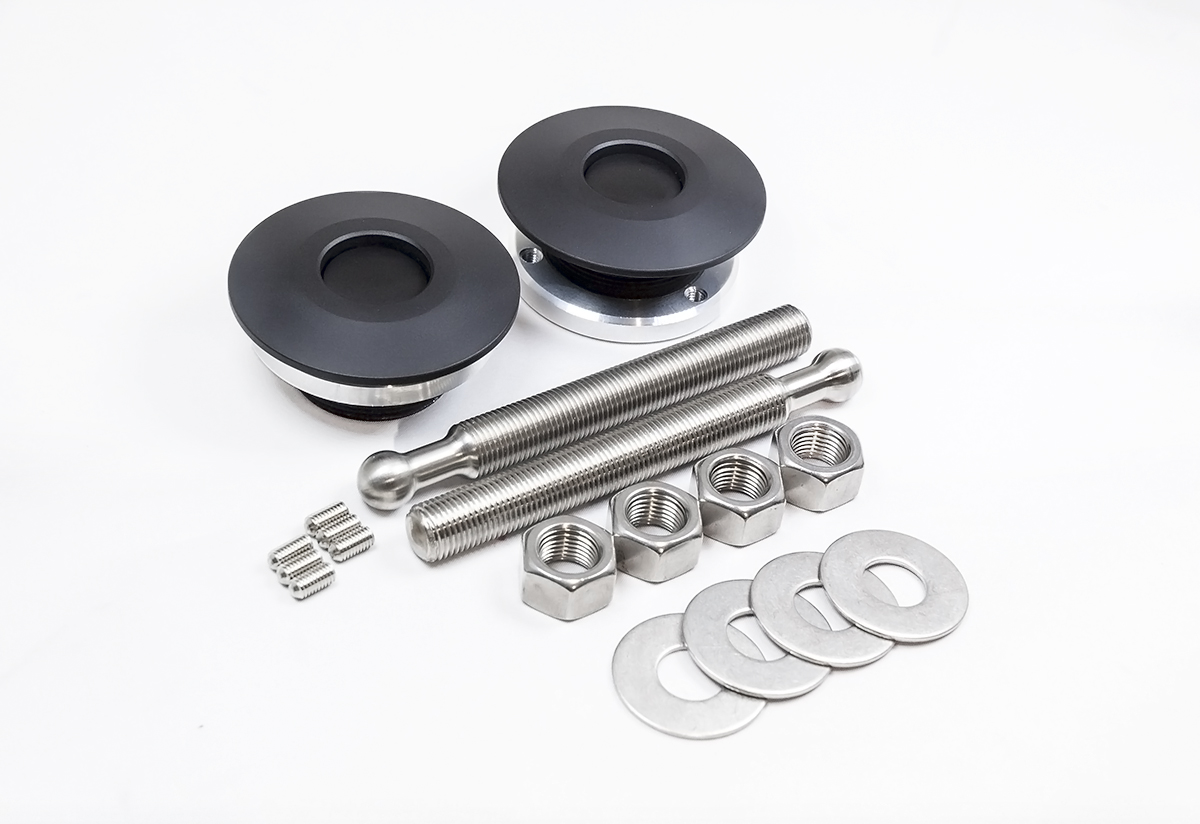

Looking for the QL-50-Series Hood Pin Kit? Click The picture below

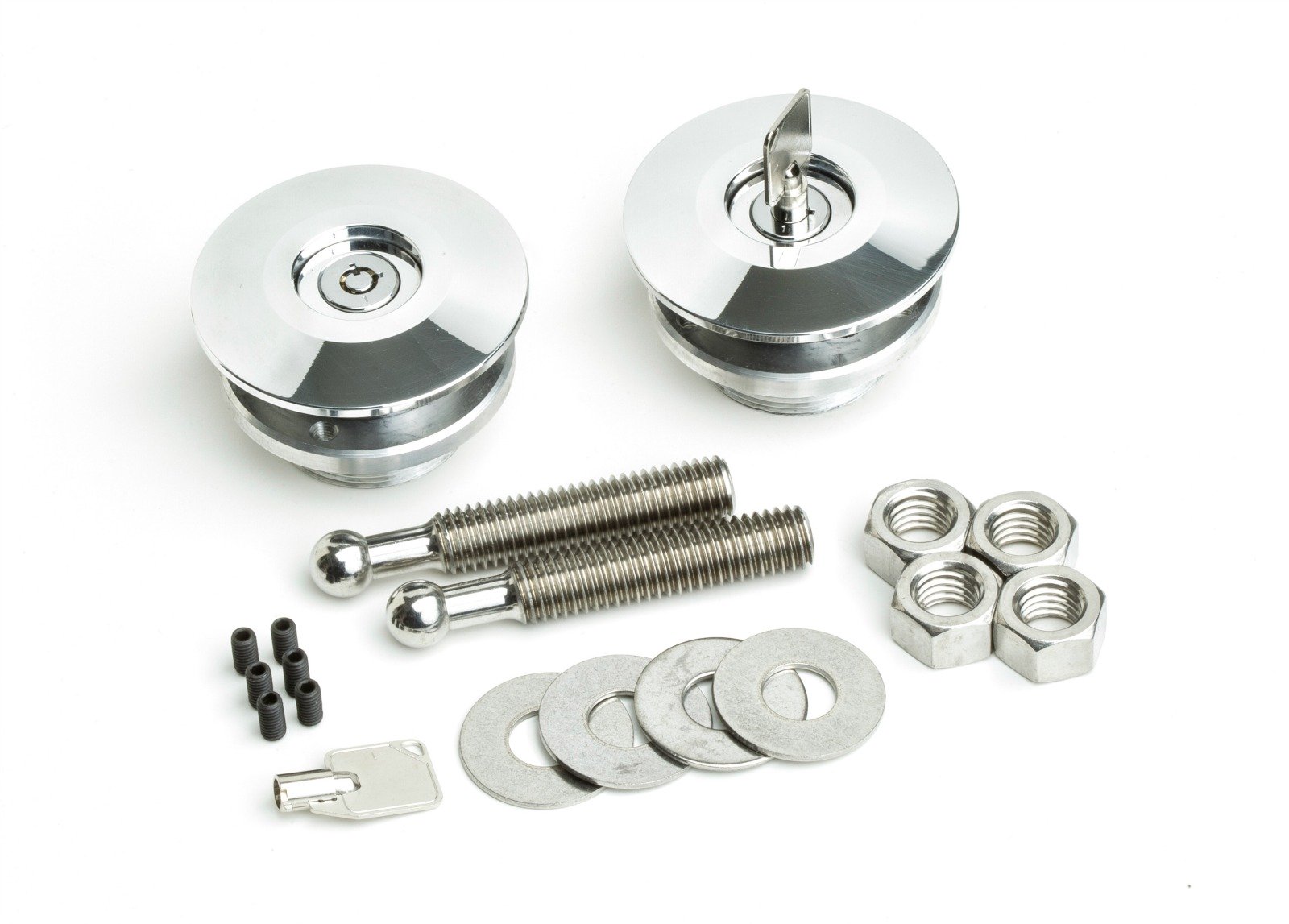

Looking for the QL-50 series hood pin kit?  Click the picture below

Looking for the QL-25 Series Multi Purpose Fasteners? Click the picture below
