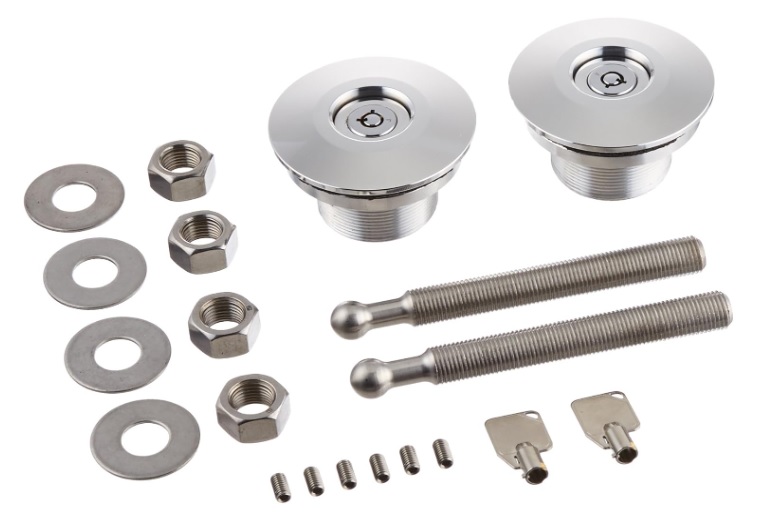

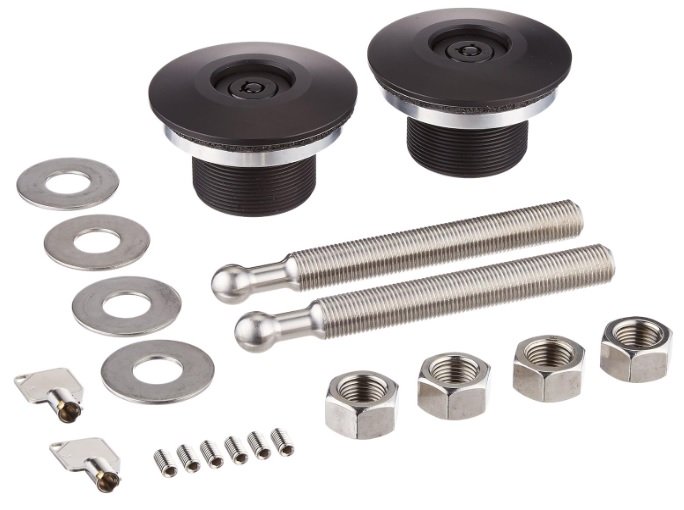

QL-50L-LP Lockable Quik-Latch Hood Pin Sets

The QL-50 series Quik-Latch Hood Pins are available with a locking option so that you can keep the valuable parts underneath your hood secure.  The lockable Quik-Latch hood pins are push button release when unlocked.  Once the lock is engaged, the button is locked into place and cannot be depressed to release the latch mechanism.

General Specifications

Materials 6061 T6 Aluminum / 303 Stainless Steel

Holding Force: 700 lbs static pull force per latch

Weight of Kit: 1 pound 8 ounces (680 grams)

Overall Height of latch: 1.60 inch (40.64mm)

Height Below Mounting Flange: .1.34 inch (34.04mm)

OD of the latch mounting flange:  2.50 inch (63.50mm)

Hole size required to mount latch: 1.50 inch (38.10 mm)

Pin dimensions: 0.5 inch ball with 1/2" fine thread pitch

Pin Length: 4 inches (101.60 mm)

Retaining Ring: 2.150 inch (54.61mm) OD x .305 inch (7.75mm) thickness

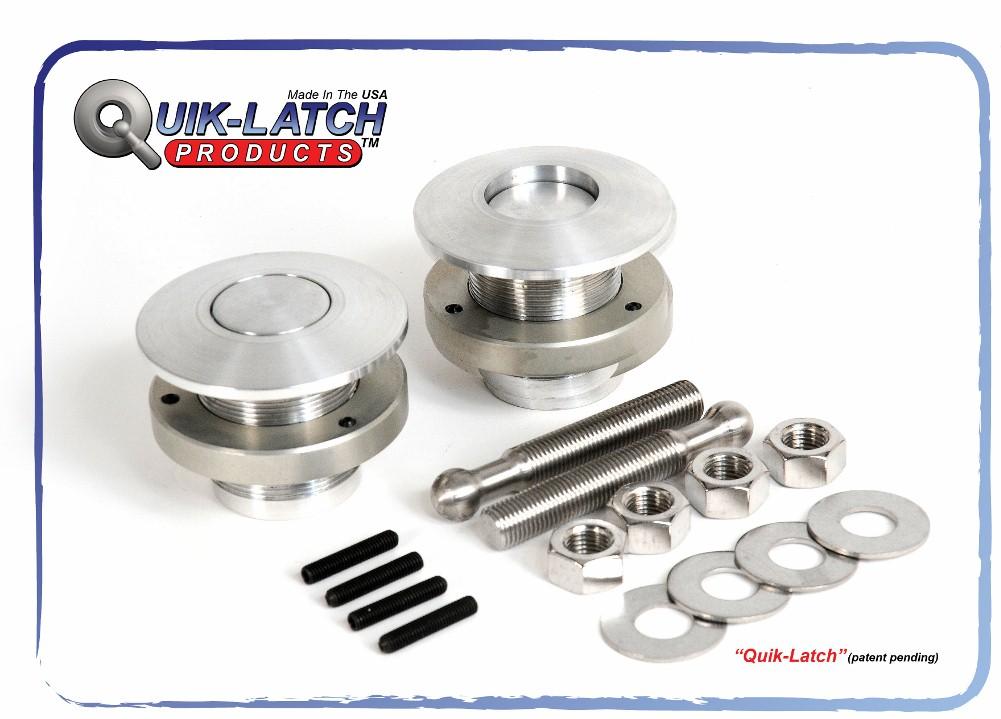

Don't need lockable hood pins?  The non lockable sets are available by clicking the pic below:

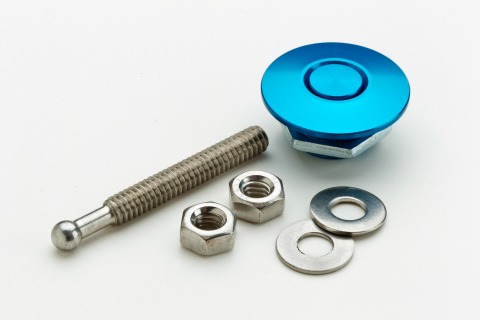

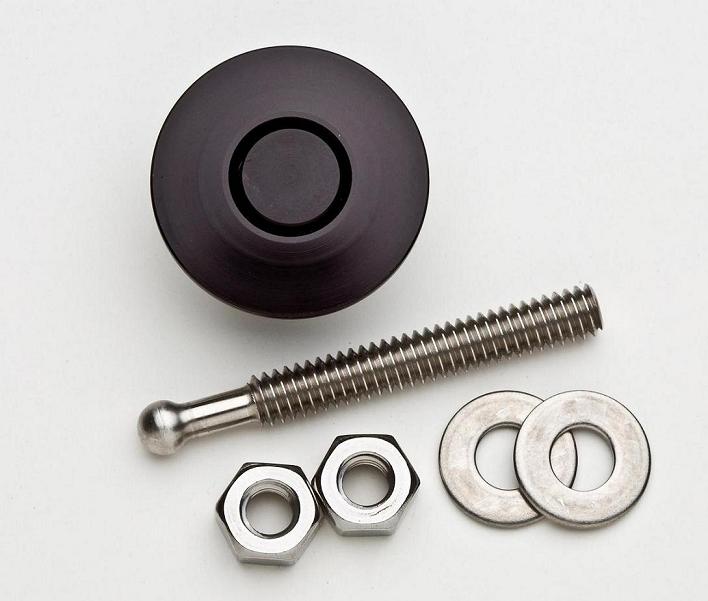

Don't forget to check out Quik-Latch Minis for multi-purpose quick release fasteners which have limitless automotive and industrial applictions
