Upper Diameter latch body options
Option 1: 1.25 inch (32mm)
Option 2: 1.50 inch (38.1mm)
Option 3: 1.0 inch (25.4mm)
Option 4: .875 inch (22mm)
Diameter of threaded portion of latch: .75 inch (19.05mm)
Length of latch body: 0.57 inches (15mm)
Length of mounting stud: 2.13 inches (54mm)
Go for a stealthy look with the black anodized mini QL-25-SB Quik-Latch! The black anodized version is mechanically identical to the QL-25-S billet mini quik-latch, except it has been been anodized. Each anodized mini Quik-Latch is constructed of T-6 aluminum and stainless steel, are capable of holding up to 150 lbs of pulling force, and is constructed to the highest of standards. For those who have black cars and are wishing to blend the latches into the paint job, the anodized black minis are the way to go.

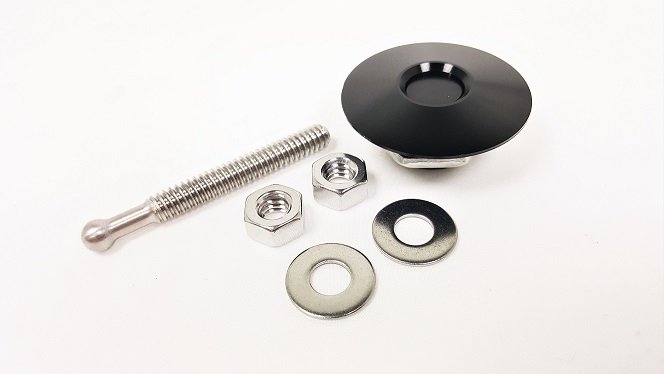

Pictured below is the QL-25-SB1.5 black anodized mini Quik-Latch with the 1.5 inch (38.10mm) upper diameter

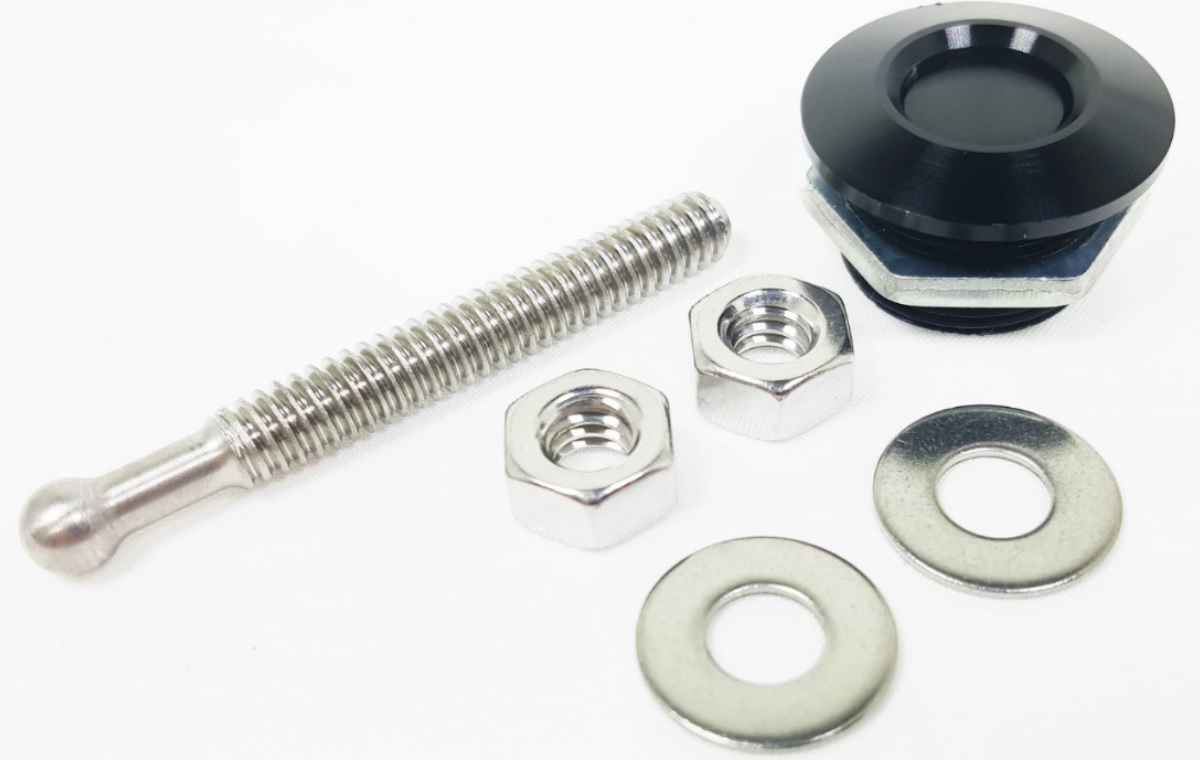

Pictured below is the QL-25-SB1 black anodized mini Quik-Latch a 1.00" (25.4mm) upper diameter

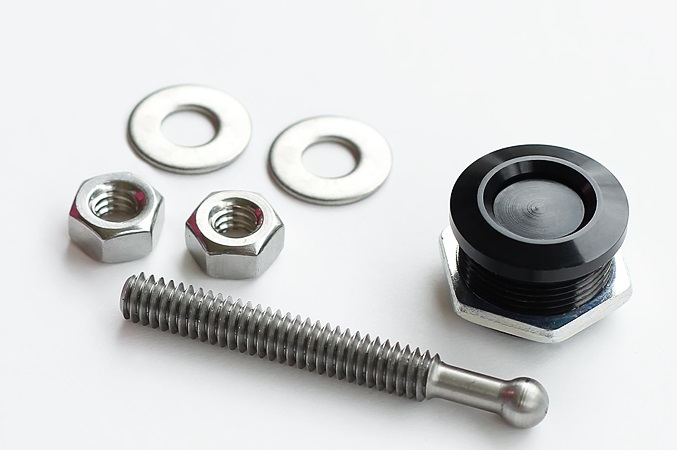

Pictured below is the QL-25-SB22 black anodized mini Quik-Latch with the .875 inch (22mm) upper diameter
Is Amazon the preferred vendor of your choice? You can also acquire Quik-Latch Minis through Amazon at the link below!
You may also want to consider a stepped drill bit to help make your installation go smoothly.
Depending on application, you may also need the items shown below:
* Please note that the use of a quantity of 2 x QL-25 Mini Quik-Latch series fasteners are not intended for use in hood pin applications where there is no OEM hood latch latch present. The QL-25 series universal latches are not designed for use as a primary hood latch mechanism, although they can function as a secondary safety mechanism.
If you are looking for the hood pin models, please consider either the QL-38 or QL-50 series Quik-Latch Hood Pin Kits
