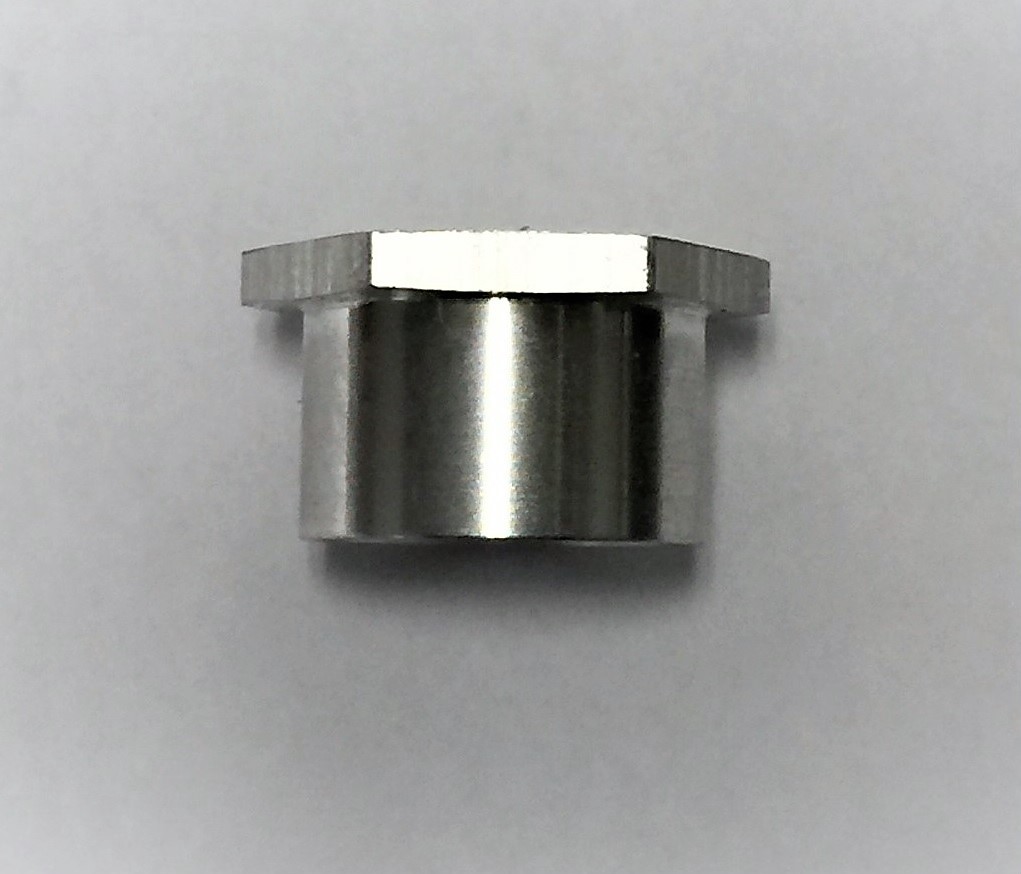

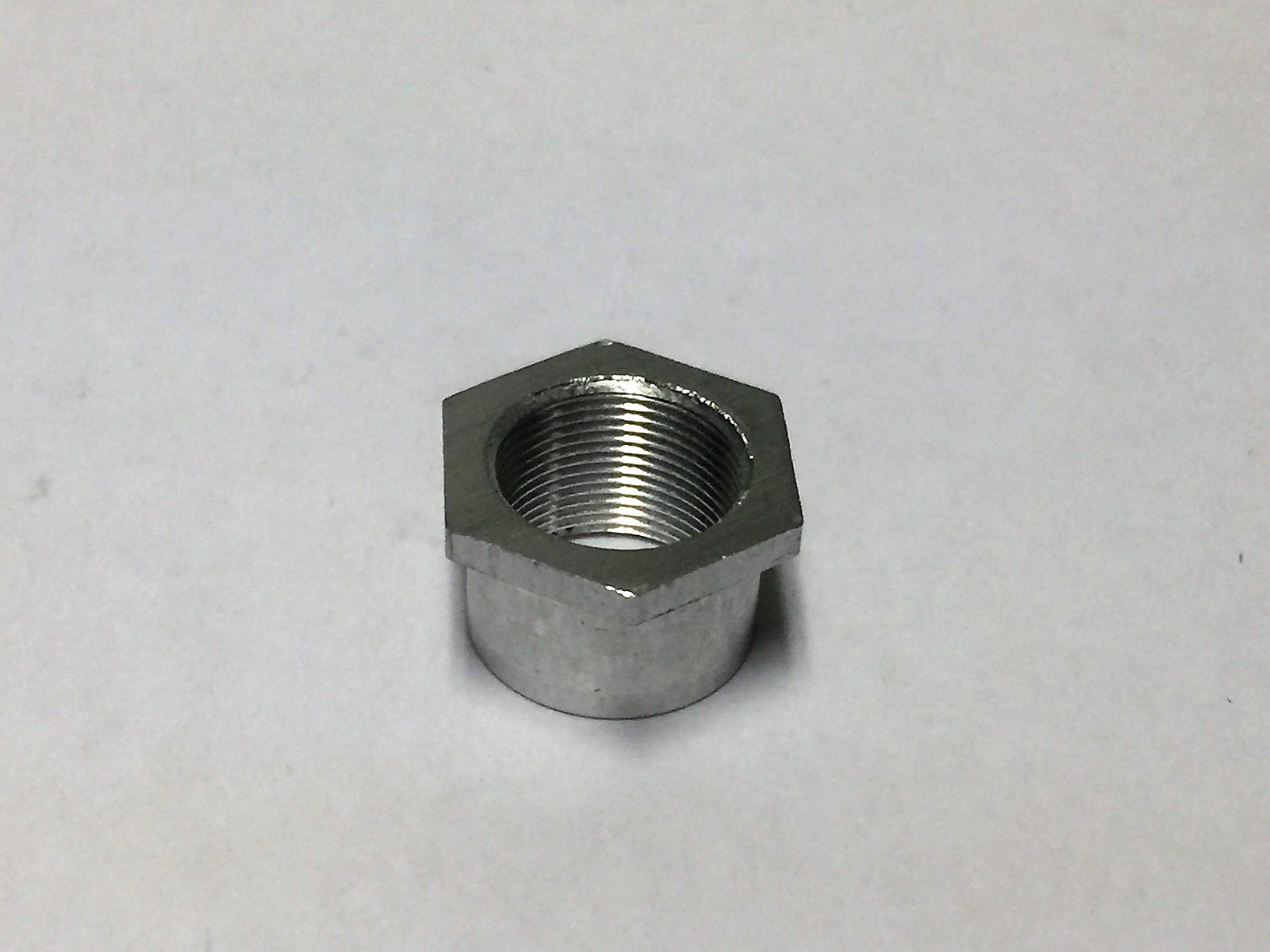

QL-25-N Extension Nut

$9.95 Per Extension Nut

The QL-25 series mini Quik-Latches are not always long enough to extend through a mounting surface because the threaded length of the latch is .450" (11.43mm)

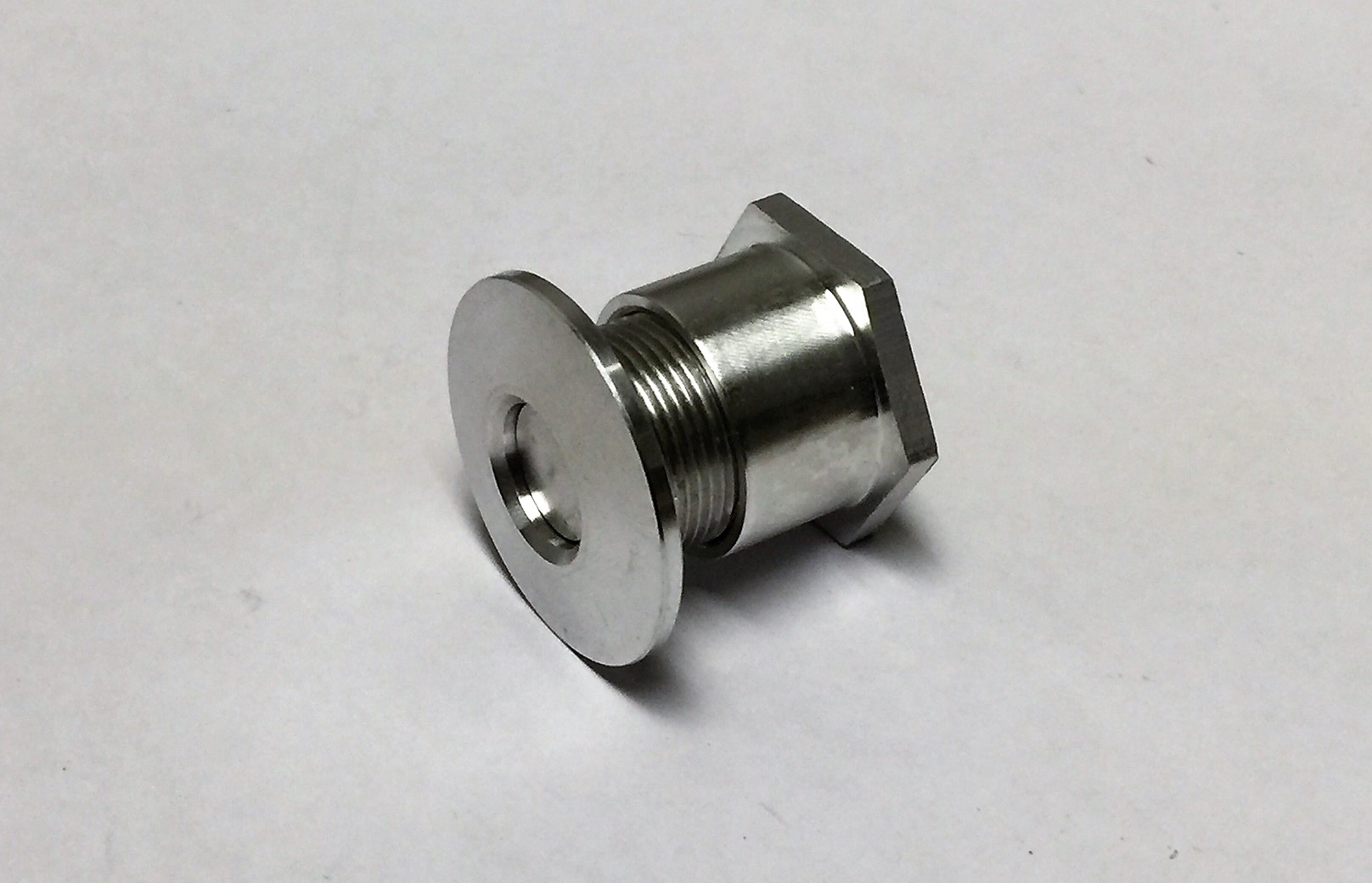

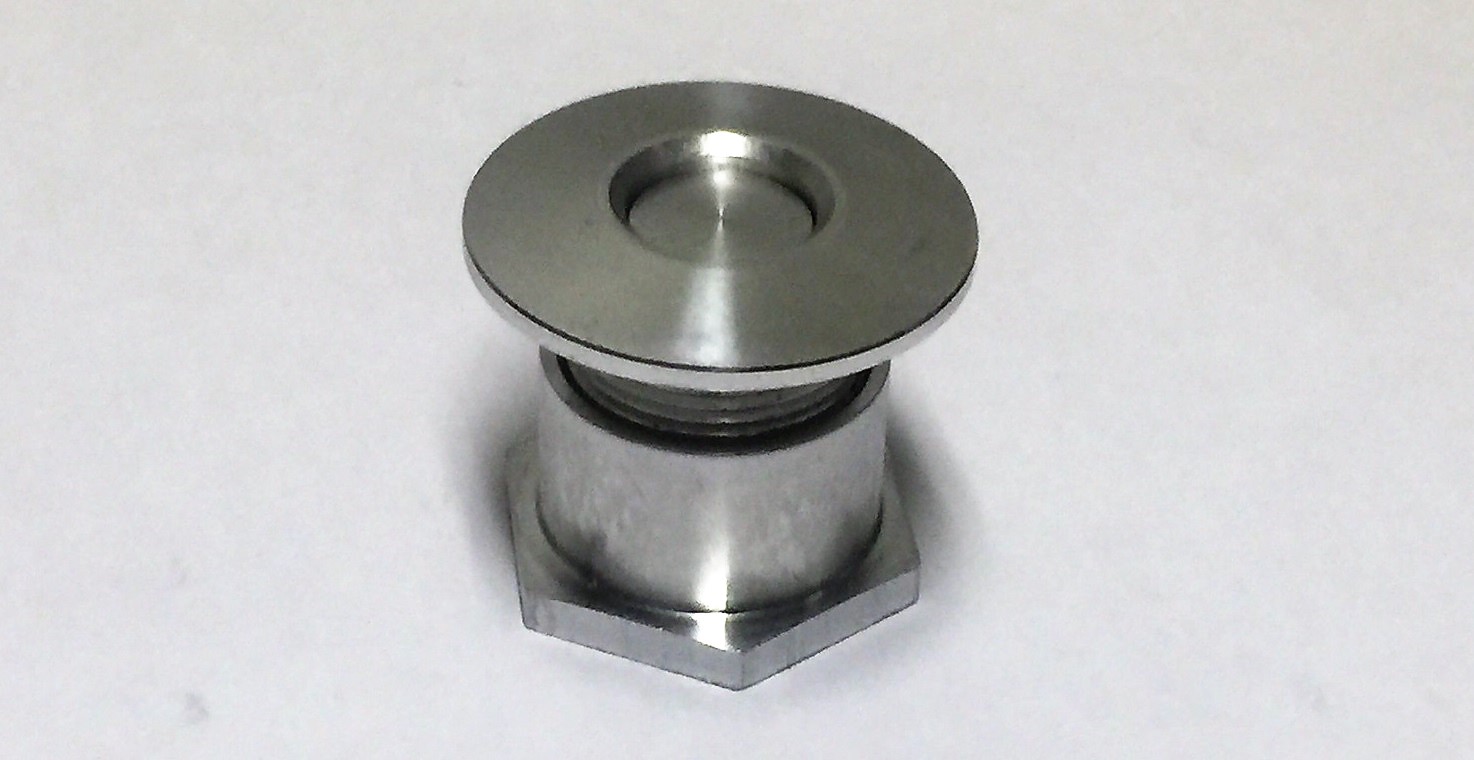

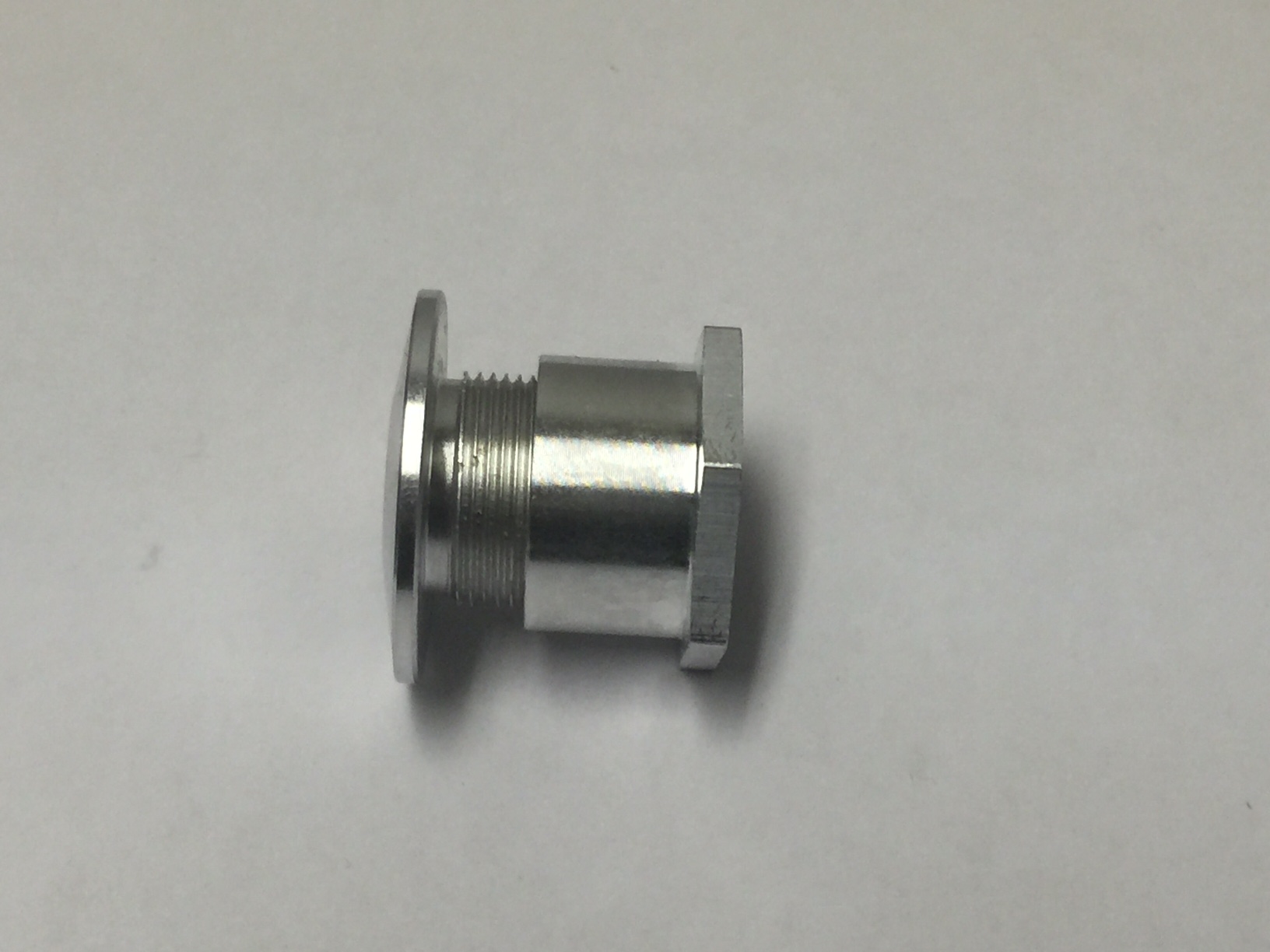

The QL-25-N extension nut allows for additional reach through a mounting surface that is up to .850" (21.59mm) thick.  This eliminates the need for countersinking panels that are thicker than the threaded length of the latch.

Specs:

Total height of extension nut:   .625"  (15.88 mm)
Height from bottom of mounting flange: .500"   (12.7 mm)
Width of hex nut flange: 1.00" (25.4 mm)
Outside width below mounting flange: .875" (22.23 mm)
Maximum reach when threaded onto latch: .850" (21.59 mm)
