Take the guesswork out of pin to latch alignment angle

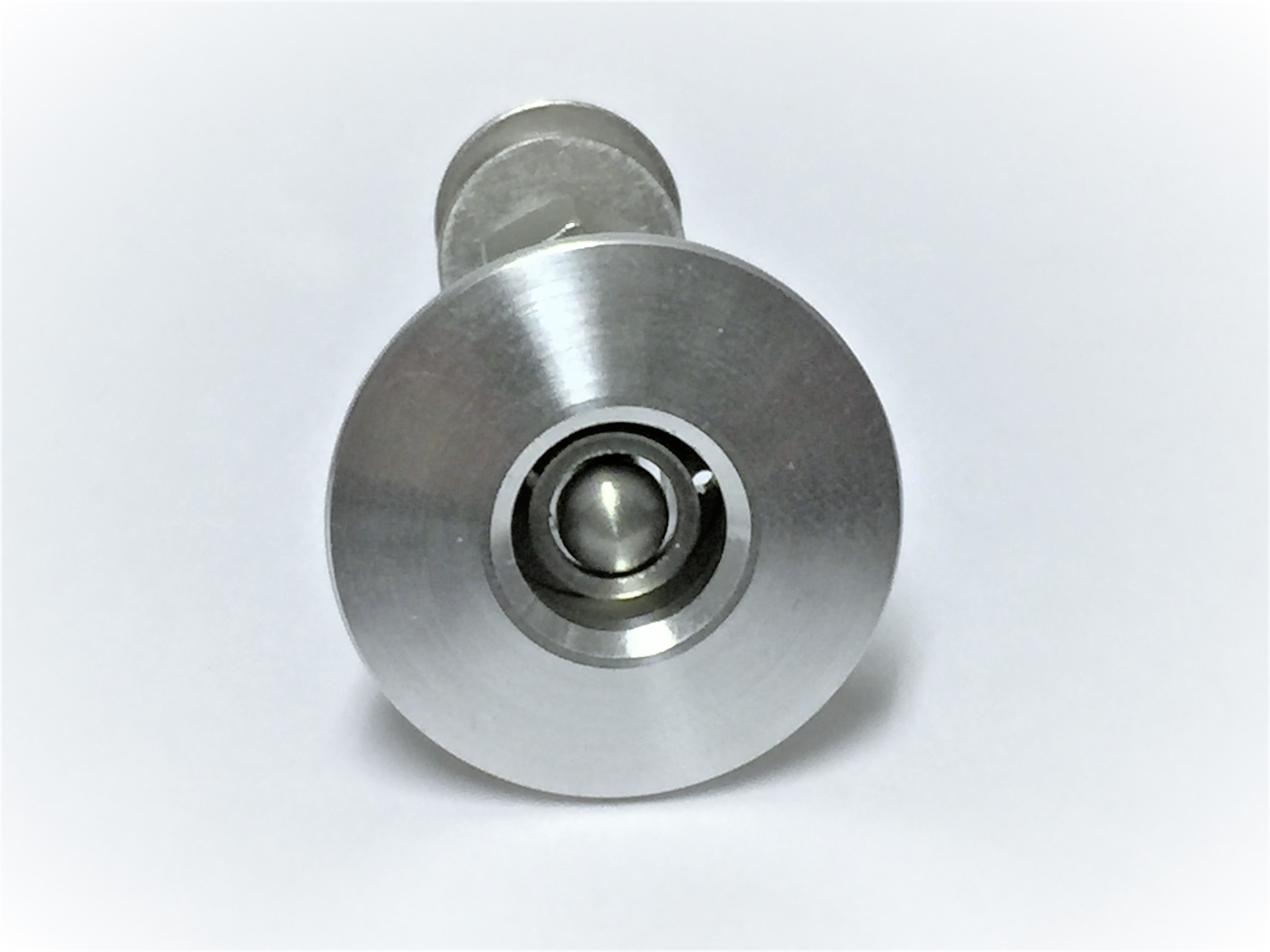

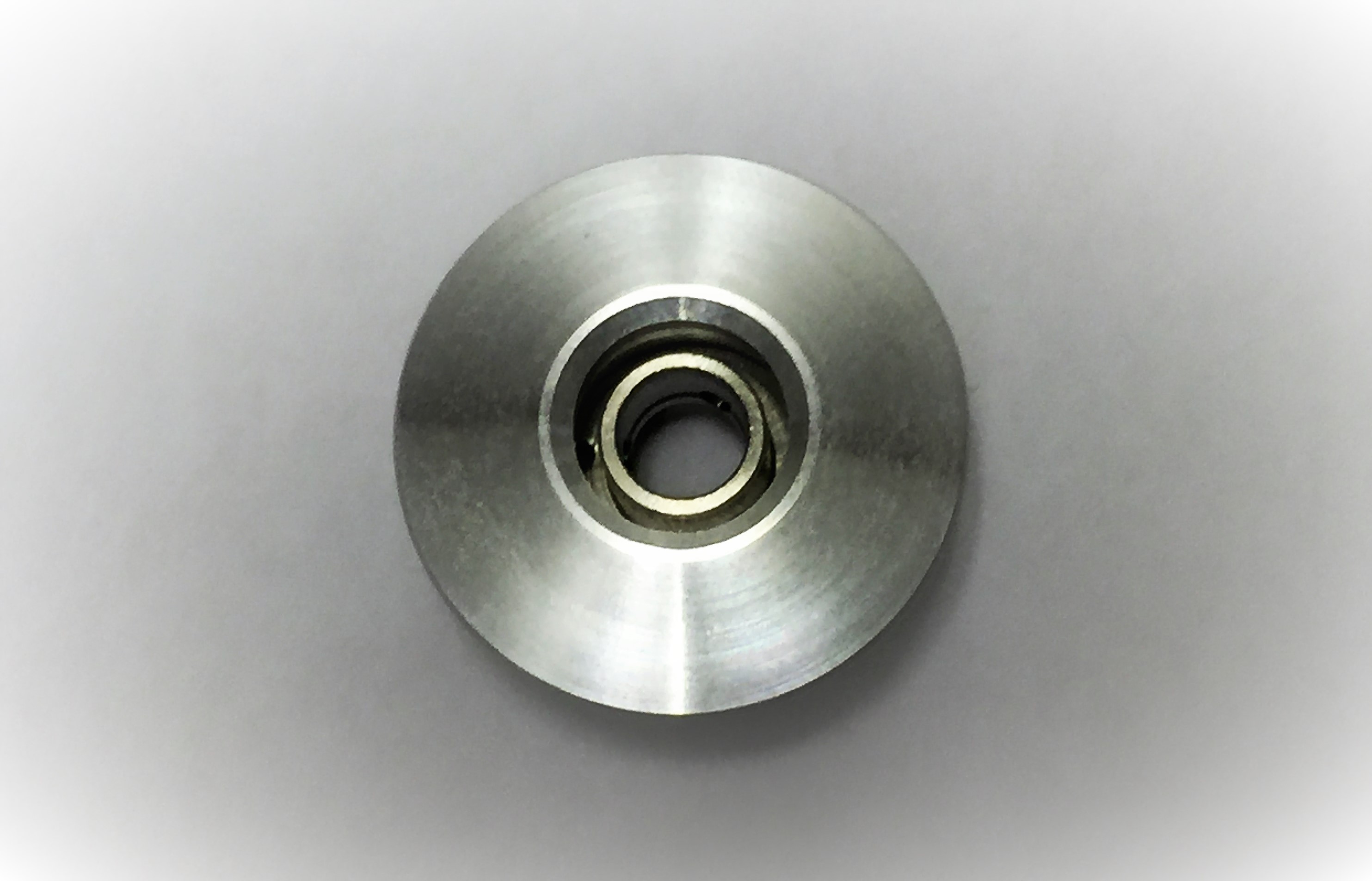

The mini latch alignment tool is a QL-25 series latch housing without the coupling mechanism, which fits exactly into the same 3/4" (19.05mm) hole that a QL-25 series mini installs into.

Use of this tool will help the installer confirm visual alignment of the mounting pin relative to the center of any QL-25 series latch. Confirmation of pin to latch centerline alignment will help prevent binding and fitment issues during the installation process.
